Oxygen plasma treatment is an effective surface preparation method for improving the wettability of Nylon and Pebax medical components used in catheter manufacturing, medical tubing, connectors, implantable devices, and other high-performance medical assemblies. Although these engineering polymers offer excellent flexibility, strength, and biocompatibility, their naturally low surface energy can make adhesive bonding, coating, printing, and overmolding difficult.
By increasing surface energy through oxygen plasma treatment, manufacturers can create cleaner, more receptive surfaces that improve process consistency without altering the material's bulk mechanical properties. This study demonstrates how the MARCH AP-600 Plasma Cleaning System significantly enhanced the wettability of molded Nylon and Pebax components through a repeatable low-pressure oxygen plasma process.
What Problem Does Oxygen Plasma Treatment Solve for Nylon and Pebax?
Medical manufacturers often encounter challenges when bonding or coating polymer components because contaminants and low-energy surfaces prevent liquids and adhesives from spreading evenly.
Common issues include:
- Poor adhesive bond strength
- Inconsistent coating coverage
- Ink adhesion problems during pad printing
- Difficulty applying hydrophilic coatings
- Reduced overmolding performance
- Increased process variability
Oxygen plasma treatment addresses these issues by removing trace organic contamination while chemically activating the polymer surface, creating a cleaner and more wettable substrate for downstream manufacturing.
Objective
This evaluation examined whether oxygen plasma treatment could:
- Increase the surface energy of Nylon and Pebax medical components
- Improve wettability by reducing water contact angle
- Provide a repeatable alternative to an existing microwave plasma process
- Prepare components for adhesive bonding, coating, printing, and assembly
Materials Evaluated
The study included:
- Nylon components
- Pebax® components
- Medical-grade polymer carrier
Three different component geometries were processed to evaluate treatment consistency across multiple part configurations.
Equipment Used
Plasma Cleaning System
MARCH AP-600 Plasma Cleaning System
Process Gas
Oxygen-based low-pressure plasma process
Test Method

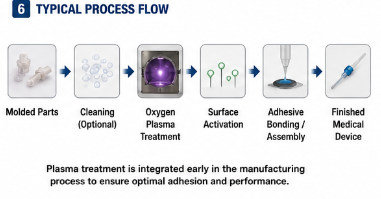

Components were positioned on the grounded electrode inside the AP-600 plasma chamber and processed using an optimized oxygen plasma recipe developed specifically for medical polymer surface activation.
Surface performance was evaluated using water contact angle measurements, one of the most widely accepted methods for determining surface energy.
Contact angle interpretation:
- High contact angle = Low surface energy and poor wettability
- Low contact angle = High surface energy and improved wettability
For many medical bonding applications, contact angles below approximately 40° indicate excellent surface activation.
Following plasma treatment, the components were vacuum packaged and shipped for additional customer validation testing.
Plasma Process
The oxygen plasma recipe was optimized to match or improve the performance of an existing microwave plasma process while maintaining uniform treatment across multiple medical device components.
The low-pressure plasma process uniformly activated the polymer surfaces without affecting the bulk properties of the Nylon or Pebax materials.
Results

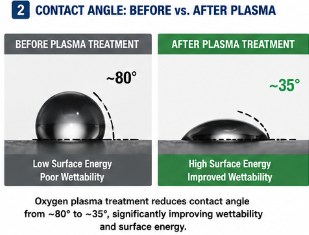

Contact Angle Measurements
| Surface Condition | Contact Angle |
|---|---|
| Before Plasma Treatment | ~80° |
| After Plasma Treatment | ~35° |

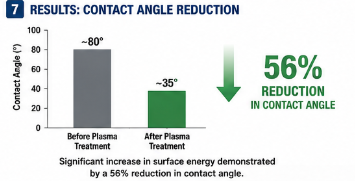

The oxygen plasma process reduced the contact angle by approximately 56%, demonstrating a significant increase in surface energy.
Visual inspection also showed improved liquid spreading across the treated surfaces, confirming successful surface activation.
One of the smallest components could not be measured using the contact angle instrument due to its geometry; however, it received the same plasma treatment as the other samples for downstream evaluation.

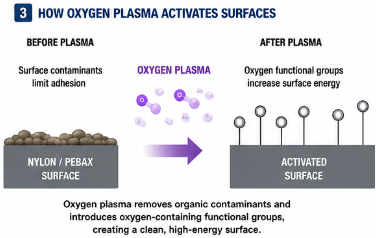

Why Oxygen Plasma Improves Wettability
Nylon and Pebax naturally possess relatively low-energy surfaces that limit the ability of adhesives, coatings, and liquids to spread uniformly.
Low-pressure oxygen plasma improves these materials by:
- Removing trace organic contaminants
- Introducing oxygen-containing functional groups
- Increasing surface energy
- Enhancing liquid wetting characteristics
- Promoting stronger adhesive interactions
Unlike mechanical abrasion or chemical primers, oxygen plasma modifies only the outermost molecular layer of the material, preserving the polymer's mechanical strength and dimensional stability.
The reduction in contact angle from approximately 80° to 35° indicates a dramatic improvement in the material's ability to accept adhesives, coatings, and inks.

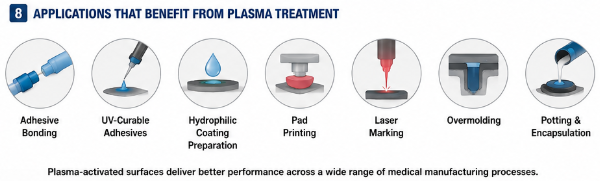

Medical Manufacturing Applications
Improved surface wettability benefits numerous medical manufacturing processes, including:
- Medical adhesive bonding
- UV-curable adhesive assembly
- Catheter manufacturing
- Hydrophilic coating preparation
- Pad printing
- Laser marking
- Overmolding
- Potting and encapsulation
Because plasma activation gradually diminishes over time as surfaces naturally reorient and accumulate contaminants, manufacturers should complete downstream processing as soon as practical after treatment for optimal performance.
Benefits of Oxygen Plasma Treatment for Medical Polymers
Using oxygen plasma treatment on Nylon and Pebax components offers several manufacturing advantages:
- Significant increase in surface energy
- Improved wettability and liquid spreading
- Enhanced adhesive bond performance
- Better coating and printing consistency
- Uniform treatment across complex geometries
- Clean, dry process with no chemical residues
- Repeatable and environmentally friendly surface preparation
Conclusion
Testing demonstrated that the MARCH AP-600 Plasma Cleaning System effectively increased the surface energy of Nylon and Pebax medical components using an optimized oxygen plasma process.
The treatment reduced water contact angle from approximately 80° to 35°, significantly improving wettability and preparing the surfaces for adhesive bonding, coatings, printing, and other secondary manufacturing operations.
For manufacturers producing catheters, medical tubing, connectors, and other polymer-based medical devices, oxygen plasma treatment provides a reliable, repeatable, and environmentally friendly method of improving surface performance without compromising the material's mechanical properties.
