# How much usable working area does the AP-1000 have?

## Learn the chamber dimensions and electrode measurements of the AP-1000 plasma system. View chamber specifications, working area dimensions, and reference images for fixture planning.

 **What are the chamber and electrode dimensions of the AP-1000?**

If you're designing fixtures or determining whether your product will fit inside an **AP-1000 Plasma System**, this guide outlines the internal chamber dimensions, electrode sizes, and usable working area.

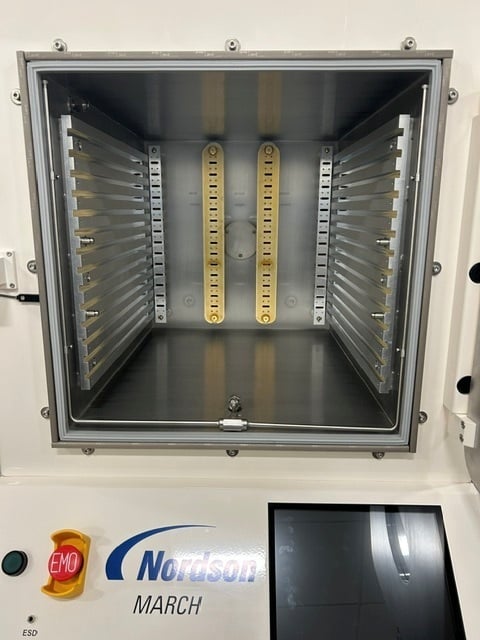

What are the AP-1000 chamber dimensions?

The AP-1000 chamber measures:

| Dimension | Metric | Imperial |
| --- | --- | --- |
| Width | 457 mm | 18 in |
| Depth | 610 mm | 24 in |
| Height | 457 mm | 18 in |

The total chamber volume is **127 liters (7,776 in³).**

![01\_AP1000\_Chamber\_Dimensions](https://www.api-knowledgebase.com/hs-fs/hubfs/01_AP1000_Chamber_Dimensions.png?width=480&height=640&name=01_AP1000_Chamber_Dimensions.png)

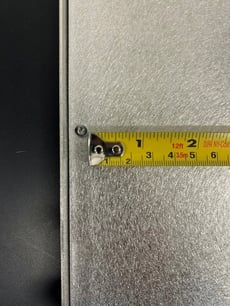

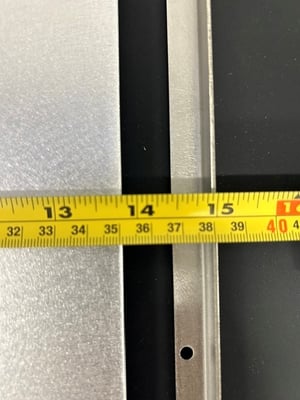

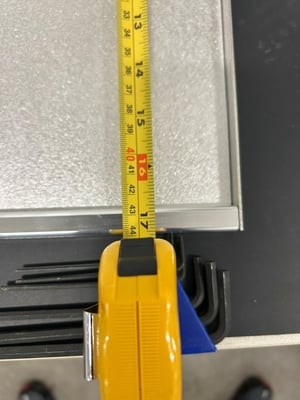

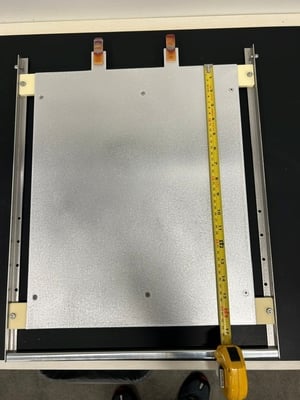

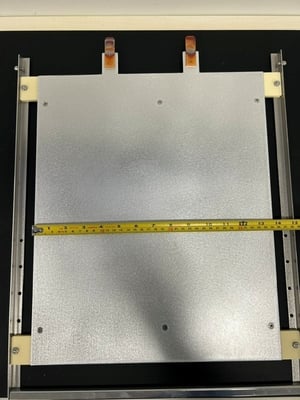

 **What are the dimensions of the power electrode?**

The powered electrode provides a usable working surface of:

- **349 mm (13.74 in) wide**
- **425 mm (16.73 in) long**

**![11\_AP1000\_Working\_Area\_Length\_Closeup](https://www.api-knowledgebase.com/hs-fs/hubfs/11_AP1000_Working_Area_Length_Closeup.png?width=300&height=400&name=11_AP1000_Working_Area_Length_Closeup.png)![10\_AP1000\_Working\_Area](https://www.api-knowledgebase.com/hs-fs/hubfs/10_AP1000_Working_Area.png?width=300&height=400&name=10_AP1000_Working_Area.png)**

**![13\_AP1000\_Usable\_Width\_Closeup](https://www.api-knowledgebase.com/hs-fs/hubfs/13_AP1000_Usable_Width_Closeup.png?width=300&height=400&name=13_AP1000_Usable_Width_Closeup.png)![16\_AP1000\_Door\_Closed](https://www.api-knowledgebase.com/hs-fs/hubfs/16_AP1000_Door_Closed.png?width=300&height=400&name=16_AP1000_Door_Closed.png)**

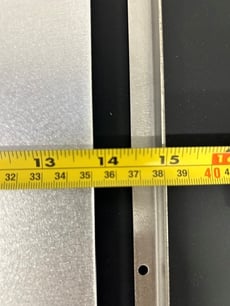

 **What are the dimensions of the ground electrode?**

The ground electrode measures:

- **407 mm (16.02 in) wide**
- **425 mm (16.73 in) long**

![03\_AP1000\_Chamber\_Width\_Measurement](https://www.api-knowledgebase.com/hs-fs/hubfs/03_AP1000_Chamber_Width_Measurement.png?width=230&height=307&name=03_AP1000_Chamber_Width_Measurement.png)![05\_AP1000\_Power\_Electrode\_Width\_Closeup](https://www.api-knowledgebase.com/hs-fs/hubfs/05_AP1000_Power_Electrode_Width_Closeup.png?width=230&height=307&name=05_AP1000_Power_Electrode_Width_Closeup.png)![10\_AP1000\_Working\_Area](https://www.api-knowledgebase.com/hs-fs/hubfs/10_AP1000_Working_Area.png?width=230&height=307&name=10_AP1000_Working_Area.png)

![02\_AP1000\_Chamber\_Depth\_Measurement](https://www.api-knowledgebase.com/hs-fs/hubfs/02_AP1000_Chamber_Depth_Measurement.png?width=230&height=307&name=02_AP1000_Chamber_Depth_Measurement.png)![12\_AP1000\_Usable\_Width](https://www.api-knowledgebase.com/hs-fs/hubfs/12_AP1000_Usable_Width.png?width=230&height=307&name=12_AP1000_Usable_Width.png)

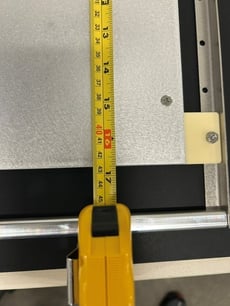

 **What is the usable working area of the ground electrode?**

Although the ground electrode is **407 mm (16.02 in)** wide, the mounting screws reduce the usable flat work area.

The maximum recommended working width is:

- **384 mm (15.1 in)**

When designing fixtures or placing parts on the electrode, ensure they fit within this usable area to avoid interference with the mounting hardware.

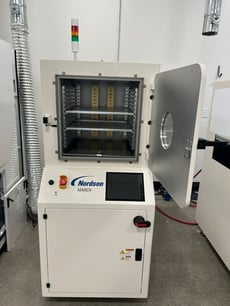

 **What does the AP-1000 chamber look like?**

The images below show the chamber interior, shelf configuration, and exterior views of the AP-1000.

![08\_AP1000\_Ground\_Electrode\_Width](https://www.api-knowledgebase.com/hs-fs/hubfs/08_AP1000_Ground_Electrode_Width.png?width=230&height=307&name=08_AP1000_Ground_Electrode_Width.png)![07\_AP1000\_Ground\_Electrode\_Length\_Closeup](https://www.api-knowledgebase.com/hs-fs/hubfs/07_AP1000_Ground_Electrode_Length_Closeup.png?width=230&height=307&name=07_AP1000_Ground_Electrode_Length_Closeup.png)![06\_AP1000\_Ground\_Electrode\_Length](https://www.api-knowledgebase.com/hs-fs/hubfs/06_AP1000_Ground_Electrode_Length.png?width=230&height=307&name=06_AP1000_Ground_Electrode_Length.png)

 **Summary**

| Feature | Dimension |
| --- | --- |
| Chamber | 457 × 610 × 457 mm (18 × 24 × 18 in) |
| Power Electrode | 349 × 425 mm (13.74 × 16.73 in) |
| Ground Electrode | 407 × 425 mm (16.02 × 16.73 in) |
| Usable Ground Working Width | 384 mm (15.1 in) |
