Silver is widely used throughout electronics manufacturing, semiconductor packaging, hybrid circuits, medical devices, and high-reliability interconnect applications because of its excellent electrical conductivity and corrosion resistance. While silver provides outstanding electrical performance, even microscopic amounts of organic contamination from manufacturing, handling, or storage can significantly reduce its surface energy, resulting in poor wettability, inconsistent adhesive bonding, uneven coating coverage, and unreliable printing performance.
One of the most effective methods for preparing silver surfaces is oxygen plasma treatment. Unlike traditional wet chemical cleaning methods, oxygen plasma cleaning removes organic contaminants while activating the surface at a molecular level without damaging the base material. The result is a cleaner, higher-energy surface that promotes improved adhesion and more consistent downstream manufacturing processes.
This application demonstrates how the MARCH AP-600 Plasma Cleaning System was used to perform silver plasma cleaning, significantly improving surface wettability and preparing the material for bonding, coating, and printing operations.
Why Surface Energy Matters for Silver Components
Successful manufacturing processes depend on liquids spreading evenly across a surface. Adhesives, conformal coatings, inks, encapsulants, and solder pastes all perform better when the substrate has high surface energy.
When contaminants such as machining oils, fingerprints, airborne hydrocarbons, or processing residues remain on a silver surface, they create a barrier that prevents liquids from wetting the material properly. This often leads to:
- Weak adhesive bonds
- Uneven conformal coatings
- Poor ink or paste printing
- Inconsistent encapsulation
- Reduced manufacturing reliability
Oxygen plasma surface treatment increases the surface energy of silver by removing these contaminants and creating highly active surface sites that improve liquid spreading and adhesion.
Objective
The purpose of this evaluation was to determine how effectively oxygen plasma treatment could improve the surface properties of silver substrates.
Specifically, testing focused on:
- Increasing the surface energy of silver
- Reducing contact angle measurements
- Improving surface wettability
- Preparing silver for adhesive bonding and coating applications
- Evaluating potential surface morphology changes for future customer analysis
Equipment Used
| Equipment | Description |
|---|---|
| Plasma Cleaning System | MARCH AP-600 Plasma Cleaning System |
| Process Gas | Oxygen (O₂) |
The MARCH AP-600 is designed for precision plasma surface treatment of metals, polymers, ceramics, and electronic assemblies where consistent cleaning and surface activation are required.

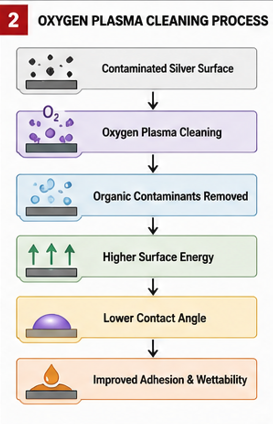

How Oxygen Plasma Cleaning Was Performed
Thin silver sheets were mounted onto glass slides to maintain flatness during plasma processing.

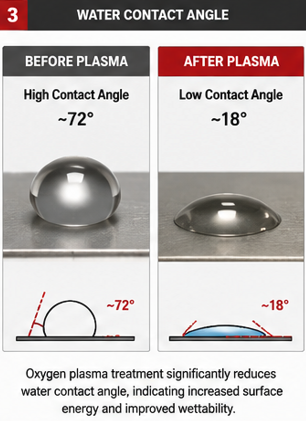

The effectiveness of the oxygen plasma cleaning process was evaluated using contact angle testing, one of the industry's most widely accepted methods for measuring surface energy.
Contact angle measures how well a liquid spreads across a surface.
- Lower contact angle indicates higher surface energy.
- Higher surface energy results in improved wettability.
- Improved wettability generally leads to stronger adhesion and more consistent coating performance.
For many electronics manufacturing and bonding applications, a contact angle below 30° is considered excellent.
Following plasma treatment, treated samples were also visually inspected to evaluate changes in liquid spreading behavior. Additional surface roughness characterization was reserved for customer-specific metrology.

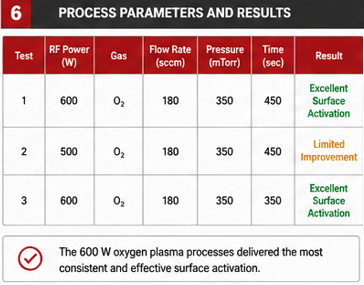

Oxygen Plasma Process Parameters
| Test | RF Power | Process Gas | Flow Rate | Process Pressure | Process Time | Result |
|---|---|---|---|---|---|---|
| 1 | 600 W | Oxygen | 180 sccm | 350 mTorr | 450 sec | Excellent surface activation |
| 2 | 500 W | Oxygen | 180 sccm | 350 mTorr | 450 sec | Limited improvement |
| 3 | 600 W | Oxygen | 180 sccm | 350 mTorr | 350 sec | Excellent surface activation |
Oxygen Plasma Treatment Results
Testing showed that oxygen plasma treatment significantly improved the surface condition of the silver substrates.
Following silver plasma cleaning:
- Water contact angle decreased substantially.
- Surface energy increased significantly.
- Ink spread more uniformly across treated surfaces.
- Surface activation was achieved without wet chemical cleaning.
- Two of the three plasma recipes produced excellent results.
- The 600 W oxygen plasma process consistently outperformed the reduced-power recipe.

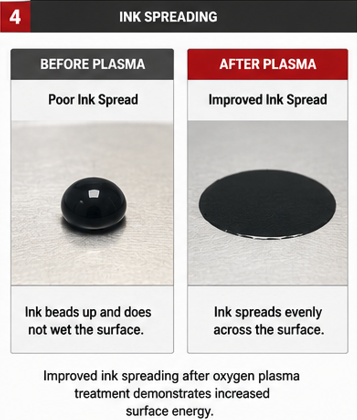

The improved ink spreading observed after treatment provided a clear visual indication that the plasma process successfully removed contaminants that had previously limited surface wettability.
Although quantitative surface roughness measurements were outside the scope of this evaluation, the treated samples were prepared for additional customer characterization.
Why Oxygen Plasma Improves Silver Surface Activation

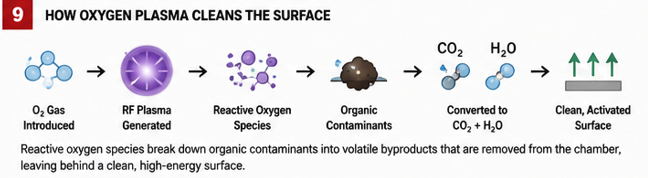

During oxygen plasma cleaning, energetic oxygen species react with organic contamination on the surface of the silver, converting oils, hydrocarbons, and other residues into volatile compounds that are safely removed from the chamber.
At the same time, the plasma creates a highly active surface that dramatically increases the material's surface energy.
Because contaminants are removed without mechanical abrasion or aggressive chemicals, oxygen plasma treatment provides a repeatable and environmentally friendly method of metal surface preparation.
The increased surface energy observed during testing makes silver substrates better suited for numerous manufacturing processes, including:
- Adhesive bonding
- Epoxy encapsulation
- Conformal coating
- Ink and solder paste printing
- Wire bonding preparation
- Protective coatings
- Surface finishing
- Electronics assembly
Manufacturers frequently use plasma surface treatment before these operations to improve process consistency and reduce adhesion failures.
Why the 600 W Process Performed Better
Among the recipes evaluated, the 600 W oxygen plasma process consistently produced the highest level of surface activation.
Compared with the 500 W process, the higher-power recipe generated more effective contaminant removal while producing a greater increase in surface energy. Under the tested conditions, both 600 W recipes delivered excellent wettability improvements, indicating that higher RF power was more effective for preparing silver substrates prior to downstream manufacturing.
Although optimal plasma parameters will vary depending on part geometry, contamination levels, and production requirements, these results demonstrate that higher plasma power can significantly improve cleaning efficiency for silver applications.
Benefits of Oxygen Plasma Cleaning for Silver Components
Using oxygen plasma treatment before secondary manufacturing processes offers several advantages over conventional cleaning methods.
Key benefits include:
- Increased surface energy
- Lower contact angle
- Improved wettability
- Better adhesive bonding
- More uniform conformal coating
- Enhanced ink and paste printing
- Environmentally friendly cleaning process
- No harsh wet chemicals
- Repeatable and consistent surface preparation
- Reduced risk of contamination-related process failures
These advantages make silver plasma cleaning an excellent solution for manufacturers seeking to improve product quality while reducing variability in production.
Conclusion
This evaluation demonstrated that oxygen plasma treatment using the MARCH AP-600 Plasma Cleaning System is an effective method for improving the surface properties of silver substrates.
By removing organic contamination and increasing surface energy, the plasma process significantly reduced contact angle, improved surface wettability, and prepared the silver surfaces for downstream manufacturing operations such as adhesive bonding, conformal coating, epoxy encapsulation, wire bonding, and ink printing.
The testing also showed that the 600 W oxygen plasma process produced the most consistent surface activation under the evaluated conditions.
For manufacturers looking to improve adhesion, coating performance, or printing consistency, oxygen plasma cleaning provides a repeatable, environmentally friendly alternative to traditional wet chemical cleaning while delivering reliable surface activation for demanding electronics manufacturing applications.
